KODAK OG-7.2 7.2kW 48V2 Off-Grid Kit

KODAK OG-7.2 7.2kW 48V2 Off-Grid Kit

KODAK OG-7.2 7.2kW 48V2

Photovoltaic Panels
8 CS3K-300P-MC4 Canadian Solar 300W Poly KuPower Half-Cell with MC4
Inverters
Mounting Kit
8 REN-420081 End Clamp+ 30 - 50mm Silver
12 REN-420082 Middle Clamp+ 31 - 51mm Silver
24 REN-860006 VarioSole Hanger bolt M10 x 200 Wood Substructure
8 REN-900246 VarioSole + End Cap 41X35 rail Single - Grey
4 REN-400525 VarioSole+ Mounting rail 41 x 35 x 4400 mm
Cable
1 MC4-2M-2 MC4 Pre terminated cable 2m (Pack of 2)
1 MC4-CONN-2PACK MC4 Connector Twin Pack ( Kit 1 )
1 ARB-CABLE4-1-1000 ARB 4mm2 single-core DC cable 1000m - Black
Switches
Meters
Display
Labels
1 BOHAZARD-SET PV on Roof and Hazard Labels Pack
1 OG-7.2 KODAK Solar Off-Grid Inverter MAX 7.2kW 48V
1 DCB-NF-2I-600V-I16A-I_II-2O 600V Protection Box 2 Inputs 2 Outputs 16A Isolator Type I_II SPD
1
PYLON-UP5000-3

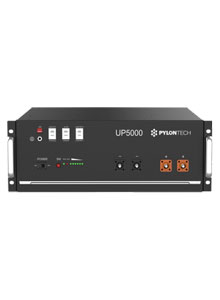

Pylon UP5000 4.8kWh Li-Ion Solar Battery 48V (Pack of 3)
1 KETO-00-125A KETO Battery Disconnector with 125A Fuses
1 BAT-HAZ-PACK Battery Hazard Label Pack
2 FL5.2-CABLE Cable Pack for Kodak FL5.2
MC4 Connector Twin Pack ( Kit 1 )
Box Width110 mm
Box Length150 mm
Box Height20 mm
ARB-CABLE4-1-1000
ARB 4mm2 single-core DC cable 1000m - Black
Length1000 mm
Area4 mm2
Cores1
ColourBlack
BOHAZARD-SET
PV on Roof and Hazard Labels Pack
OG-7.2
KODAK Solar Off-Grid Inverter MAX 7.2kW 48V
Rating7200
Min PP90 V
Max PP450 V
Max DC500 V
ConnectionMC4
ConnectorRound Post 8mm
Min DC42 V
Max DC62 V
Max Battery Current80 A
DCB-NF-2I-600V-I16A-I_II-2O
600V Protection Box 2 Inputs 2 Outputs 16A Isolator Type I_II SPD
Battery SwitchNo
Poles2
Max Voltage500 V
Max Cable35 mm
Rated Current16 A
Rated Voltage500 V
PYLON-UP5000-3
Pylon UP5000 4.8kWh Li-Ion Solar Battery 48V (Pack of 3)
TypeLithium Ion
Voltage48 V
Nominal Energy14400 Wh
ConnectorSurLok
Warranty5 years
KETO-00-125A
KETO Battery Disconnector with 125A Fuses
Battery SwitchYes
Poles4
Max Voltage48 V
Max Cable40 mm
Rated Current125 A
Rated Voltage48 V
BAT-HAZ-PACK
Battery Hazard Label Pack
FL5.2-CABLE
Cable Pack for Kodak FL5.2
Box Width190 mm
Box Length210 mm
Box Height50 mm

Major System Components

Array
Canadian Solar 300W Polycrystalline
Mounting
Renusol on roof (VarioSole)
Electrical
KODAK 7200W 1 Phase
Storage

Array Design

3350
1675
0
992
1984
2976
3968

System Summary

Physical
Roof
Orientation°
Pitch35°
Location
Region
Array
Width3.00 m
Height3.00 m
Surface Area13.29 m2
Weight166.51 kg
WeightM212.53 kg
Panel - Canadian Solar 300W Poly KuPower Half-Cell with MC4
Panel Specifications
Number required8
Rating300 Wp
Length1,675 mm
Width992 mm
Voc at STC39.3 V
Vmpp at STC32.7 V
Impp at STC9.18 A
Isc at STC9.65 A
Array Specifications
Array Power2,400 Wp
Inverter - KODAK Solar Off-Grid Inverter MAX 7.2kW 48V
Phases1
No. of MPPT2
Rated AC Power7,200 W
Max DC
Current36.00 A
Voltage500 V
PP Voltage
Min90 V
Max450 V
Electrical - KODAK Solar Off-Grid Inverter MAX 7.2kW 48V
Quantity1
String Quantity2
Strings1 * (1x4 / 1x4)
String Voc at 0 °C168.20 / 168.20 V
String Vmpp at 80 °C104.90 / 104.90 V
String Vmpp at 0 °C142.57 / 142.57 V
Input Isc at 80 °C9.92 A
Distance to Array12 m
Cable Area4 mm2
Voltage Drop1.14 %
Storage - Kodak 5.12kWh 48V Battery Module (Pack of 2)
System TypeFull Hybrid
Type of BatteryLithium Ion
Usable Battery Capacity10240 Wh
Voltage48 V
Max Charge Rate (5 Minutes)10240 W
Max Discharge Rate (5 Minutes)12000 W

PV Performance Estimation

A. Installation Data - New MCS Calculation

Installed capacity of PV system - kWP (stc)2.400 KWp
Orientation of the PV system - degrees from South
Inclination of system - degrees from horizontal35°

B. Calculation

kWh/kWp (KK) from table1,680 kWh/kWp
Shade factor (SF)1.00
Estimated annual output (kWp x KK xSF)4,032 kWh
