KODAK OG1.24 1.5kW 24V Off-Grid Kit

KODAK OG1.24 1.5kW 24V Off-Grid Kit

KODAK OG1.24 1.5kW 24V

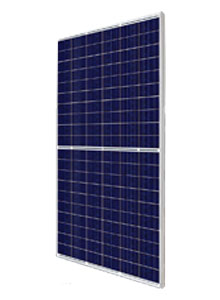

5 CS3K-300P-MC4 Canadian Solar 300W Poly KuPower Half-Cell with MC4
Inverters
Mounting Kit
8 REN-420081 End Clamp+ 30 - 50mm Silver
6 REN-420082 Middle Clamp+ 31 - 51mm Silver
14 REN-860006 VarioSole Hanger bolt M10 x 200 Wood Substructure
8 REN-900246 VarioSole + End Cap 41X35 rail Single - Grey
1 REN-400525 VarioSole+ Mounting rail 41 x 35 x 4400 mm
2 REN-400524 VarioSole+ Mounting rail 41 x 35 x 3300 mm
Cable
1 MC4-2M-2 MC4 Pre terminated cable 2m (Pack of 2)
1 MC4-CONN-2PACK MC4 Connector Twin Pack ( Kit 1 )

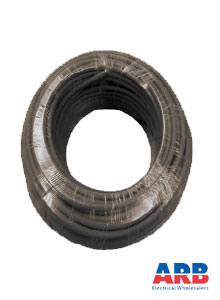

1 ARB-CABLE4-1-1000 ARB 4mm2 single-core DC cable 1000m - Black
Switches
2 KG20-T203-GBA294 K&N Single Phase AC Switch Disconnector 25A
Meters
Display
Labels
1 BOHAZARD-SET PV on Roof and Hazard Labels Pack
1 OG1.24 KODAK Solar Off-Grid Inverter 1.5kW 24V
1 DCB-NF-1I-600V-I16A-I_II-1O 600V Protection Box 1 Inputs 1 Outputs 16A Isolator Type I_II SPD
1 G2500-24 GITER 2.56kWh, 25.6V/100Ah LFP battery module
2 BATCAB10-1M-PAIR Pair of BATCAB10-1M
1 KETO-00-80A KETO Battery Disconnector with 80A Fuses

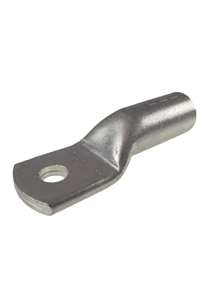

2 HLK-LUG10-8 10mm2 Helukabel Cable Terminal Lug M8 - Single

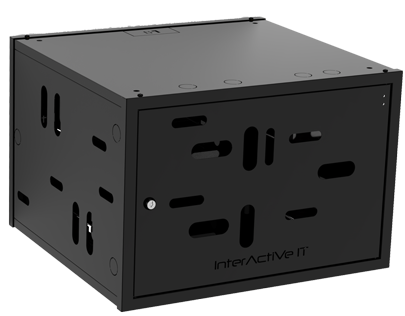

1 BATTRACK-GP2 Battery Rack for Giter 2x batteries

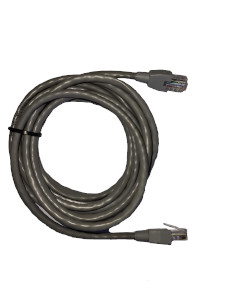

1 GITER-RS-3M Giter RS485 BMS Cable



ColourBlack
MC4-CONN-2PACK
MC4 Connector Twin Pack ( Kit 1 )
Box Width110 mm
Box Length150 mm
Box Height20 mm
ARB-CABLE4-1-1000
ARB 4mm2 single-core DC cable 1000m - Black
Length1000 mm
Area4 mm2
Cores1
ColourBlack
KG20-T203-GBA294
K&N Single Phase AC Switch Disconnector 25A
Battery SwitchNo
Poles3
Max Voltage230 V
Max Cable10 mm
Rated Current25 A
Rated Voltage230 V
BOHAZARD-SET
PV on Roof and Hazard Labels Pack
OG1.24
KODAK Solar Off-Grid Inverter 1.5kW 24V
Rating1500
Min PP120 V
Max PP380 V
Max DC400 V
ConnectionScrew Terminal
ConnectorRound Post 6mm
Min DC21 V
Max DC31 V
Max Battery Current60 A
DCB-NF-1I-600V-I16A-I_II-1O
600V Protection Box 1 Inputs 1 Outputs 16A Isolator Type I_II SPD
Battery SwitchNo
Poles2
Max Voltage500 V
Max Cable35 mm
Rated Current16 A
Rated Voltage500 V
G2500-24
GITER 2.56kWh, 25.6V/100Ah LFP battery module
TypeLithium Ion
Voltage24 V
Nominal Energy2560 Wh
ConnectorRound Post 8mm
Warranty2 years
BATCAB10-1M-PAIR
Pair of BATCAB10-1M
KETO-00-80A
KETO Battery Disconnector with 80A Fuses
Battery SwitchYes
Poles4
Max Voltage440 V
Max Cable35 mm
Rated Current80 A
Rated Voltage440 V
HLK-LUG10-8
10mm2 Helukabel Cable Terminal Lug M8 - Single
BATTRACK-GP2
Battery Rack for Giter 2x batteries
Box Width550 mm
Box Length550 mm
Box Height380 mm
GITER-RS-3M
Giter RS485 BMS Cable
Box Width270 mm
Box Length270 mm
Box Height20 mm

Major System Components

Array
Canadian Solar 300W Polycrystalline
Mounting
Renusol on roof (VarioSole)
Electrical
KODAK 1500W 1 Phase
Storage

Array Design

3350
1675
0
992
1984
2976

System Summary

Physical
Roof
Orientation°
Pitch35°
Location
Region
Array
Width2.00 m
Height3.00 m
Surface Area8.31 m2
Weight103.45 kg
WeightM212.45 kg
Panel - Canadian Solar 300W Poly KuPower Half-Cell with MC4
Panel Specifications
Number required5
Rating300 Wp
Length1,675 mm
Width992 mm
Voc at STC39.3 V
Vmpp at STC32.7 V
Impp at STC9.18 A
Isc at STC9.65 A
Array Specifications
Array Power1,500 Wp
Inverter - KODAK Solar Off-Grid Inverter 1.5kW 24V
Phases1
No. of MPPT1
Rated AC Power1,500 W
Max DC
Current9.00 A
Voltage400 V
PP Voltage
Min120 V
Max380 V
Electrical - KODAK Solar Off-Grid Inverter 1.5kW 24V
Quantity1
String Quantity1
Strings1 * (1x5)
String Voc at 0 °C210.26 V
String Vmpp at 80 °C131.13 V
String Vmpp at 0 °C178.22 V
Input Isc at 80 °C9.92 A
Distance to Array12 m
Cable Area4 mm2
Voltage Drop0.97 %
Storage - GITER 2.56kWh, 25.6V/100Ah LFP battery module
System TypeFull Hybrid
Type of BatteryLithium Ion
Usable Battery Capacity2560 Wh
Voltage24 V
Max Charge Rate (5 Minutes)1440 W
Max Discharge Rate (5 Minutes)1440 W

PV Performance Estimation

A. Installation Data - New MCS Calculation

Installed capacity of PV system - kWP (stc)1.500 KWp
Orientation of the PV system - degrees from South
Inclination of system - degrees from horizontal35°
B. Calculation

kWh/kWp (KK) from table1,680 kWh/kWp
Shade factor (SF)1.00
Estimated annual output (kWp x KK xSF)2,520 kWh

For installation quote/pricing please do give us a call or send us a mail

0833059598

info@lpsi.co.za

Logo

Additional information

Weight 103.45 kg
Dimensions 300 × 200 × 300 cm

Reviews

There are no reviews yet.

Be the first to review “KODAK OG1.24 1.5kW 24V Off-Grid Kit”
