RHI 6kW 48V Self-Consumption Kit

Description

RHI 6kW 48V Self-Consumption Kit

RHI 6kW 48V Self-Consumption Kit System Consists of the following

Photovoltaic Panels
10 Canadian Solar 305W Poly KuPower Half-Cell
Inverters
Mounting Kit
8 End Clamp+ 30 – 50mm Silver
16 Middle Clamp+ 31 – 51mm Silver
28 VarioSole Hanger bolt M10 x 200 Wood Substructure
8 VarioSole + End Cap 41X35 rail Single – Grey
4 VarioSole+ Rail connector for rail 41 x 35 mm
2 VarioSole+ Mounting rail 41 x 35 x 3300 mm
4 VarioSole+ Mounting rail 41 x 35 x 4400 mm
Cable
1 MC4 Pre terminated cable 2m (Pack of 2)
1 MC4 Connector Twin Pack ( Kit 1 )
1 ARB 4mm2 single-core DC cable 1000m – Black
Switches
2 K&N Single Phase AC Switch Disconnector 40A
Meters
Display
1 Solis Data Logging Stick – WiFi
Labels
1 PV on Roof and Hazard Labels Pack
1 Solis Energy Storage 6kW Hybrid 5G Inverter with DC switch
600V Protection Box 2 Inputs 2 Outputs 16A Isolator Type I_II SPD
1 Kodak 5.12kWh 48V Battery Module
1 KETO Battery Disconnector with 125A Fuses

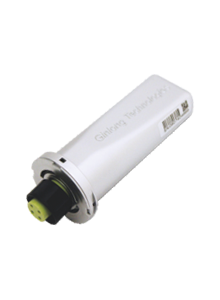

SOL-DLS-W
Solis Data Logging Stick – WiFi
Box Width60 mm
Box Length150 mm
Box Height50 mm
BOHAZARD-SET
PV on Roof and Hazard Labels Pack
SOL-6K-RHI-48ES-5G-DC
Solis Energy Storage 6kW Hybrid 5G Inverter with DC switch
Rating6000
Min PP120 V
Max PP520 V
Max DC600 V
ConnectionMC4
Length1 mm
Area50 mm2
Cores1
ColourBlack
ConnectorSurLok
Min DC42 V
Max DC54 V
Max Battery Current100 A
DCB-NF-2I-600V-I16A-I_II-2O
600V Protection Box 2 Inputs 2 Outputs 16A Isolator Type I_II SPD
Battery SwitchNo
Poles2
Max Voltage500 V
Max Cable35 mm
Rated Current16 A
Rated Voltage500 V
FL5.2
Kodak 5.12kWh 48V Battery Module
TypeLithium Ion
Voltage48 V
Nominal Energy5120 Wh
Warranty10 years
KETO-00-125A
KETO Battery Disconnector with 125A Fuses
Battery SwitchYes
Poles4
Max Voltage48 V
Max Cable40 mm
Rated Current125 A
Rated Voltage48 V

Major System Components

Array
Canadian Solar 305W Polycrystalline
Mounting
Renusol on roof (VarioSole)
Electrical
Solis 6000W 1 Phase
Storage

Array Design

3350
1675
0
992
1984
2976
3968
4960

System Summary

Physical
Roof
Orientation°
Pitch35°
Location
Region
Array
Width4.00 m
Height3.00 m
Surface Area16.62 m2
Weight209.23 kg
WeightM212.59 kg
Panel – Canadian Solar 305W Poly KuPower Half-Cell
Panel Specifications
Number required10
Rating305 Wp
Length1,675 mm
Width992 mm
Voc at STC39.5 V
Vmpp at STC32.9 V
Impp at STC9.28 A
Isc at STC9.73 A
Array Specifications
Array Power3,050 Wp
Inverter – Solis Energy Storage 6kW Hybrid 5G Inverter with DC switch
Phases1
No. of MPPT2
Rated AC Power6,000 W
Max DC
Current27.52 A
Voltage600 V
PP Voltage
Min120 V
Max520 V
Electrical – Solis Energy Storage 6kW Hybrid 5G Inverter with DC switch
Quantity1
String Quantity2
Strings1 * (1×5 / 1×5)
String Voc at 0 °C211.33 / 211.33 V
String Vmpp at 80 °C131.93 / 131.93 V
String Vmpp at 0 °C179.31 / 179.31 V
Input Isc at 80 °C10 A
Distance to Array12 m
Cable Area4 mm2
Voltage Drop0.98 %
Storage – Kodak 5.12kWh 48V Battery Module
System TypeFull Hybrid
Type of BatteryLithium Ion
Usable Battery Capacity5120 Wh
Voltage48 V
Max Charge Rate (5 Minutes)5120 W
Max Discharge Rate (5 Minutes)6000 W

PV Performance Estimation

A. Installation Data – New MCS Calculation

Installed capacity of PV system – kWP (stc)3.050 KWp
Orientation of the PV system – degrees from South
Inclination of system – degrees from horizontal35°

B. Calculation

kWh/kWp (KK) from table1,678 kWh/kWp
Shade factor (SF)1.00
Estimated annual output (kWp x KK xSF)5,117 kWh
